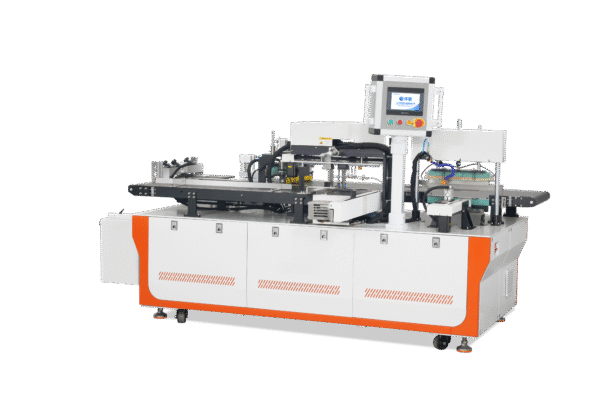

YH-ZA11B-12 Automatic Punching and Bag-Making Bagging Machine
The YH-ZA11B-12 is an all-in-one automatic punching & bagging machine that converts film rolls into punched, sealed pouches in one cycle. With 900–1200 pcs/h output, it delivers precise, retail-ready packaging for 3C accessories, hanging boxes, medical supplies and more, with customizable sealing, printing and labeling options.
Product Description
The YH-ZA11B-12 Automatic Punching and Bag-Making Bagging Machine is a premier all-in-one bagging and sealing station specifically engineered for products requiring high-quality retail presentation. By converting raw film rolls into finished, punched, and sealed pouches in a single cycle, this machine offers an unmatched in-house bag production and loading solution. It is the ultimate choice for manufacturers who need to combine high-speed output with the aesthetic requirements of hanging retail displays, ensuring every package is perfectly centered and securely sealed.
Product Features
- Streamlined Production Cycle: A comprehensive system featuring auto-roll film loading, synchronized hole punching, and on-demand pouch forming.
- High-Volume Throughput: Engineered to maintain a consistent cadence of 15-20 bags per minute (900-1200pcs/h), significantly boosting factory ROI.
- Superior Build Quality: The scientific and simplified frame design provides maximum durability and high reliability for continuous industrial use.
- Operational Simplicity: Designed for modern factories, the system is intuitive to learn and allows for rapid changeovers between different product batches.
- Precision Finishing: The automatic bag opening and loading modules ensure that even delicate boxes are handled without surface damage.
Application
The YH-ZA11B-12 excels in creating professional packaging for various consumer goods and industrial products:
- Digital Accessories: The go-to USB cable bagging system, power bank packing unit, and protective phone case packager.
- Hanging Box Displays: Perfect for retail boxes with external hanging hooks that require a protective outer film with precise punching.
- Medical Supplies: Widely applied in the healthcare and medical field for sterile pouching of boxed consumables.
- Educational & Lifestyle: Suitable for stationery sets, learning tools, and electronic gadgets.
Optional Functions (Customized for Your Needs)
Enhance your packaging line with these modular add-ons:
- Advanced Sealing Tech: Supports both Thermal Cutting Sealing and Standard Hot Sealing for a clean, professional edge.
- Smart Integration: Fully compatible with upstream conveyor belts and automated production lines.
- Custom Branding: Enhance shelf appeal with Bag UV Printing or integrate an Inkjet Online Printer for dynamic data coding.
- Automated Labeling: Seamlessly pair with an Auto-Labeling Head to apply promotional stickers or shipping labels.
Working Process
- Film Unwinding: The system automatically draws film from the roll, preparing it for the punching stage.
- Header Punching: The integrated punching unit creates the Euro-hole or round slot for retail hanging.
- Pouch Formation: The machine folds and seals the film to create a custom-sized bag.
- Automatic Loading: Products are precisely inserted into the opened bag via the automatic bag loading mechanism.
- Final Sealing: The automatic sealing mechanism closes the bag, and the finished product is discharged via the exit conveyor.
Technical Specifications
| Technical Parameter | Detail | Technical Parameter | Detail |
|---|---|---|---|
| Machine Weight | 600kg | Voltage/Power | 220V 50Hz / 3kW |
| Footprint (LWH) | 2240 * 1400 * 1560mm | Air Pressure Requirement | 0.5-0.7Mpa |
| Product Size Range | L(100-250) W(50-150) H(20-50)mm | Pneumatic Consumption | 300-500L/min |
| Max Bag Dimensions | L+2H+50≤350; W+H+30≤200mm | Customization | Bespoke sizes available on request |
Video
Click 👉：More Case Videos
FAQ
Q1: Is this machine ideal for high-speed requirements?
A: Yes, it is ideal for those who already use pre-made pouches and need a speed of around 1000 bags per hour, offering a more cost-effective and faster alternative to manual labor.
Q2: Can it handle boxes with pre-attached hooks?
A: Specifically designed for boxes with hooks on the outside, the machine ensures the film is punched and positioned perfectly to accommodate the hook.
Q3: How reliable is the sealing mechanism?
A: Our automatic sealing mechanism is built for high reliability, providing consistent, airtight, and aesthetically pleasing seals even at maximum speeds.
Contact Us
For detailed specifications, pricing, or packaging solutions, please contact us.
We will provide suitable recommendations according to your packaging requirements.
✉️Email: [email protected]
📞WhatsApp:+86 13602308576
| Products | Bagging Machine |
|---|---|
| Application Industry | Electronic Product, Hardware, Medical Pharmaceutical |
